Solar Panel Aluminium Roof Mounting system

  1. Products
  2. Solar Panel
  3. Solar Panel Roof Mounting Bracket System

1. Alumimum solar rail with 2 sizes. Stronger 30.8 x 47 x 1.5mm or Economy SR12 29.5 x 43 x 1.5mm.

2. Aluminium unistrut 41 x 41 x 2mm. Light weight.

3. Solar panel mid and end clamp. Araymond solar panel fastener mounting snap clip. Suitable on aluminium unistrut bracket. Fast installation without screws and nuts. France design and patent.

4. L-feet with different height from 45mm, 80mm, 85mm, 120mm, 125mm and 150mm, 155mm, 250mm height

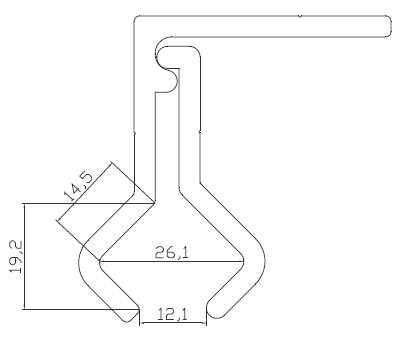

5. Tin Roof Clamp

6. Tile roof hook

7. Standing Seamlock metal roof mounting clamps.

8. Ground Clip and Earth Lug

9. Solar panel pv cable clip

10. Solar Panel Water Rain Drain Clip

solar panel mounting bracket mid end clamp

Mid & End Clamp

See More
stangin seam metal tin pitched roof clamp

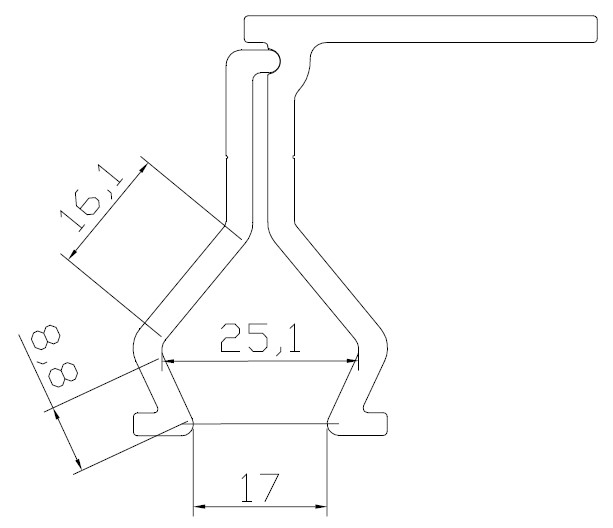

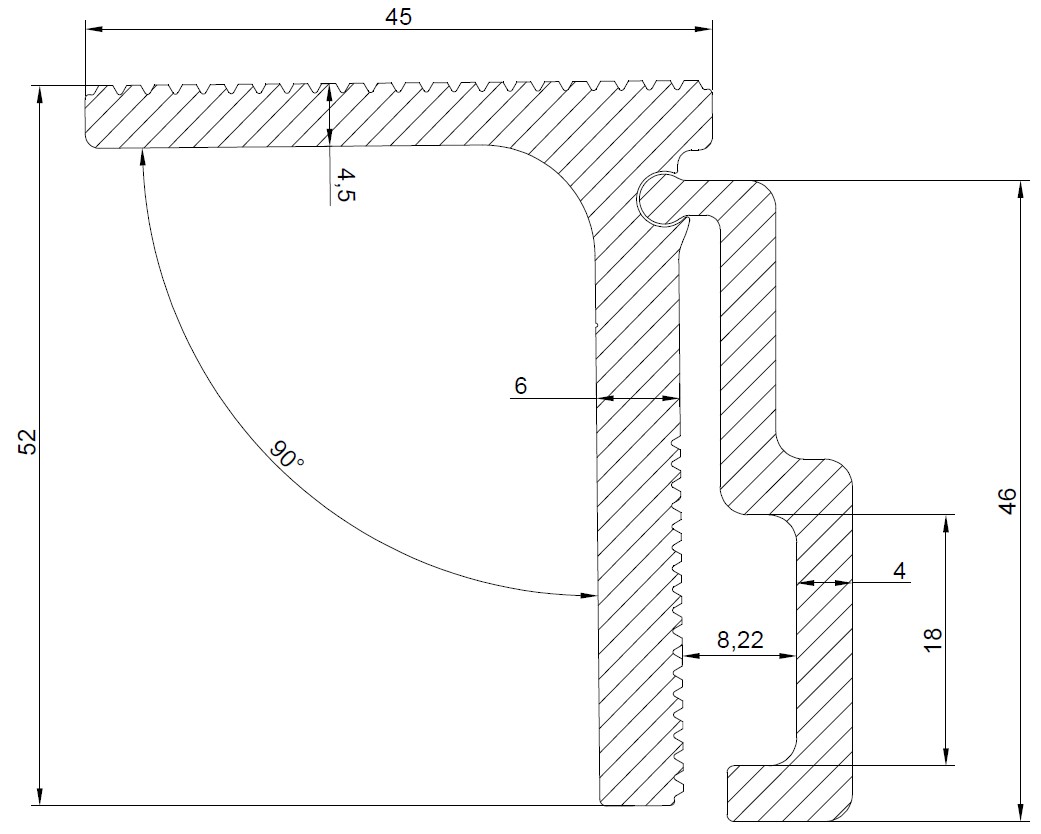

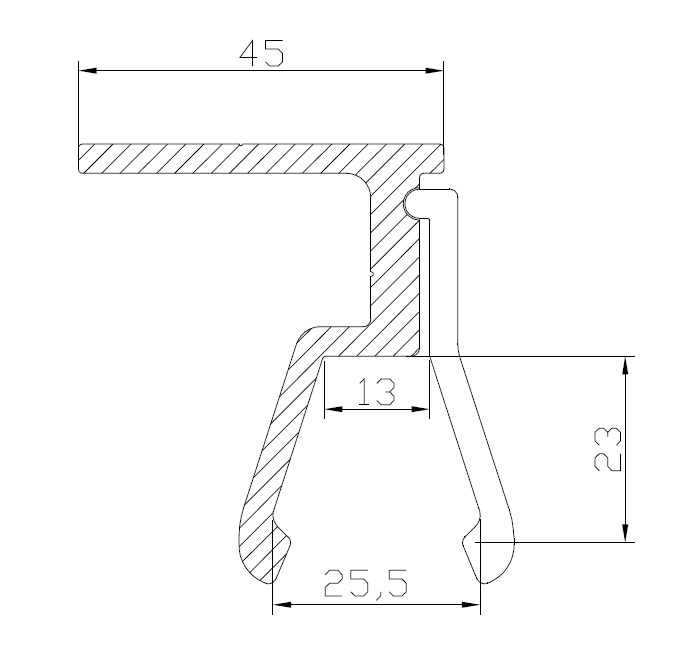

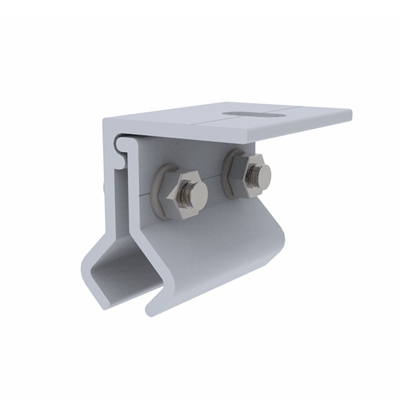

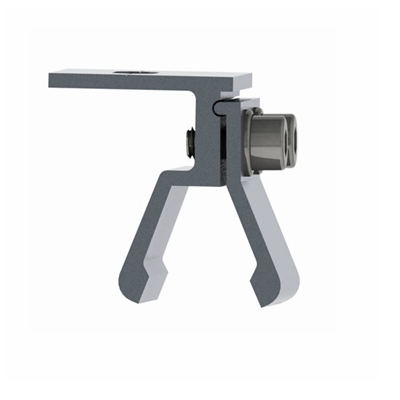

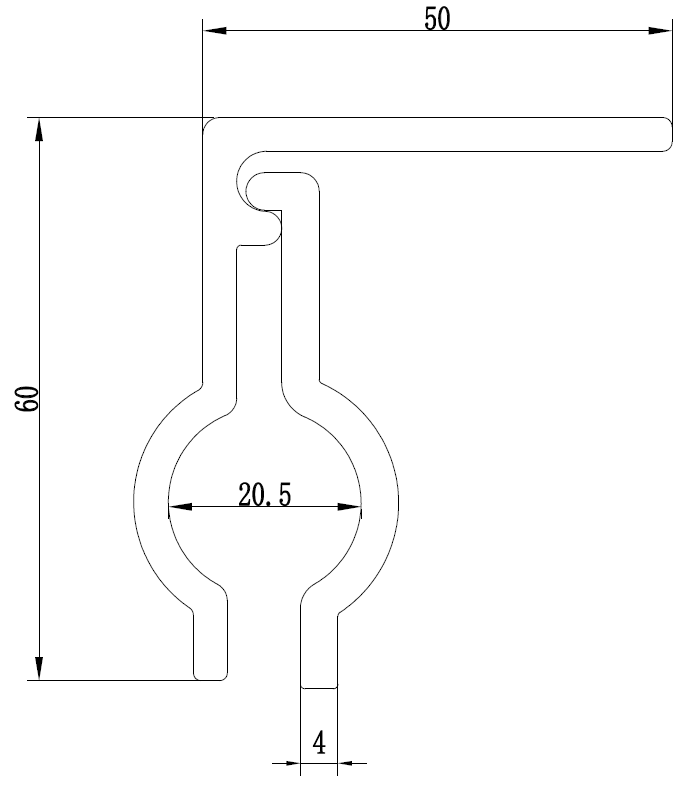

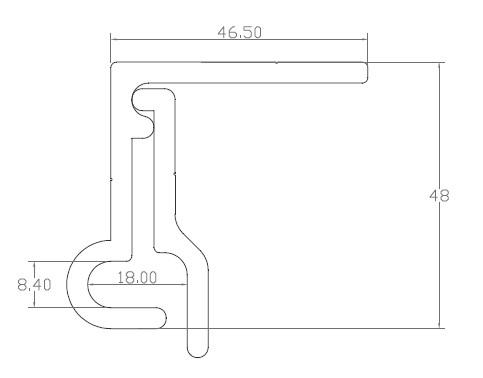

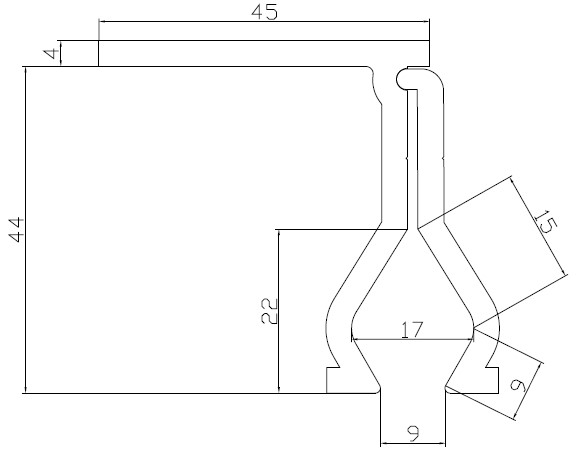

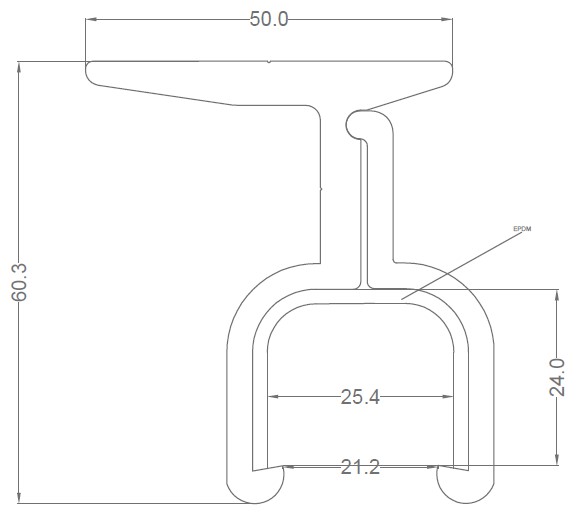

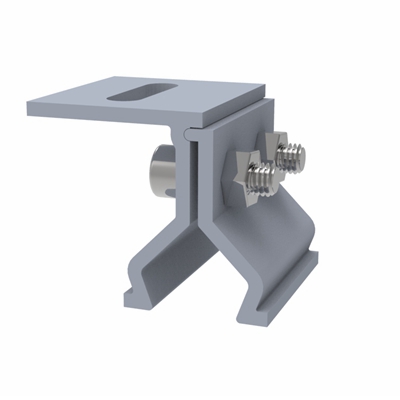

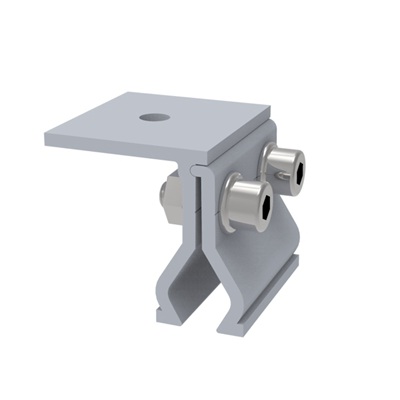

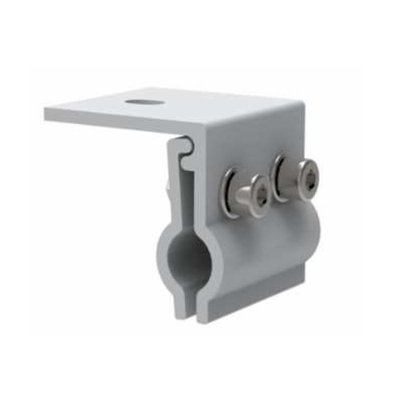

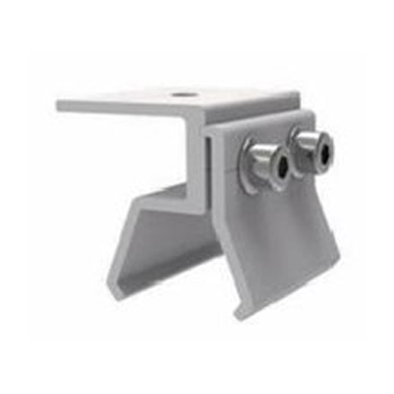

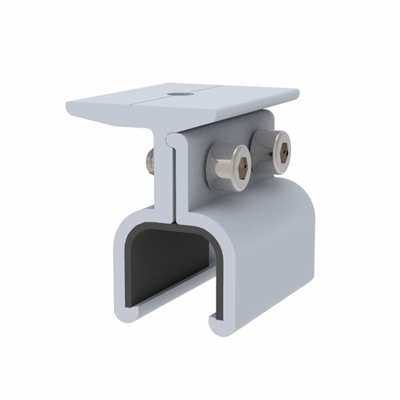

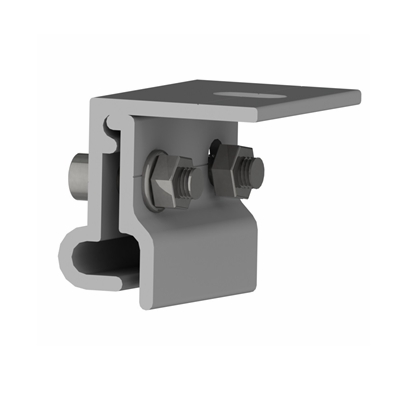

Tin Roof Clamp

See More
Trapezoid Roof Bracket flexible size

Trapezoid Roof Bracket

See More
standing seam metal tin pitched roof clamp

SeamLock Clamp

See More
Tile Roof Hook adjustable long

Tile Roof Hook Adjustable

See More
solar panel pv cable clip

Solar PV Cable Clip

See More
L-feet 250mm

L-feet up to 250mm

See More
Aluminium Unistrut

Aluminium Unistrut

See More
solar panel water drain clip

Water Drain Clip

See More

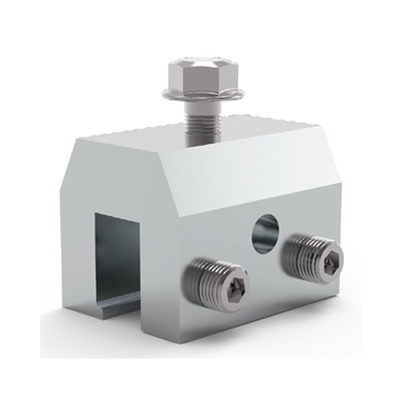

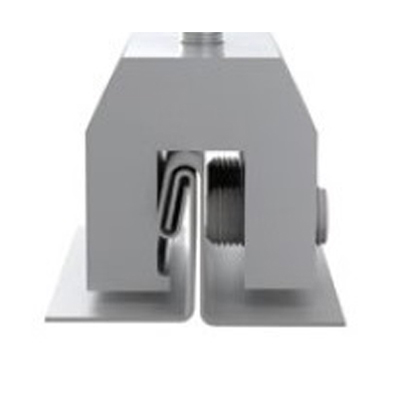

Seamlock Clamp SU3

Drawing

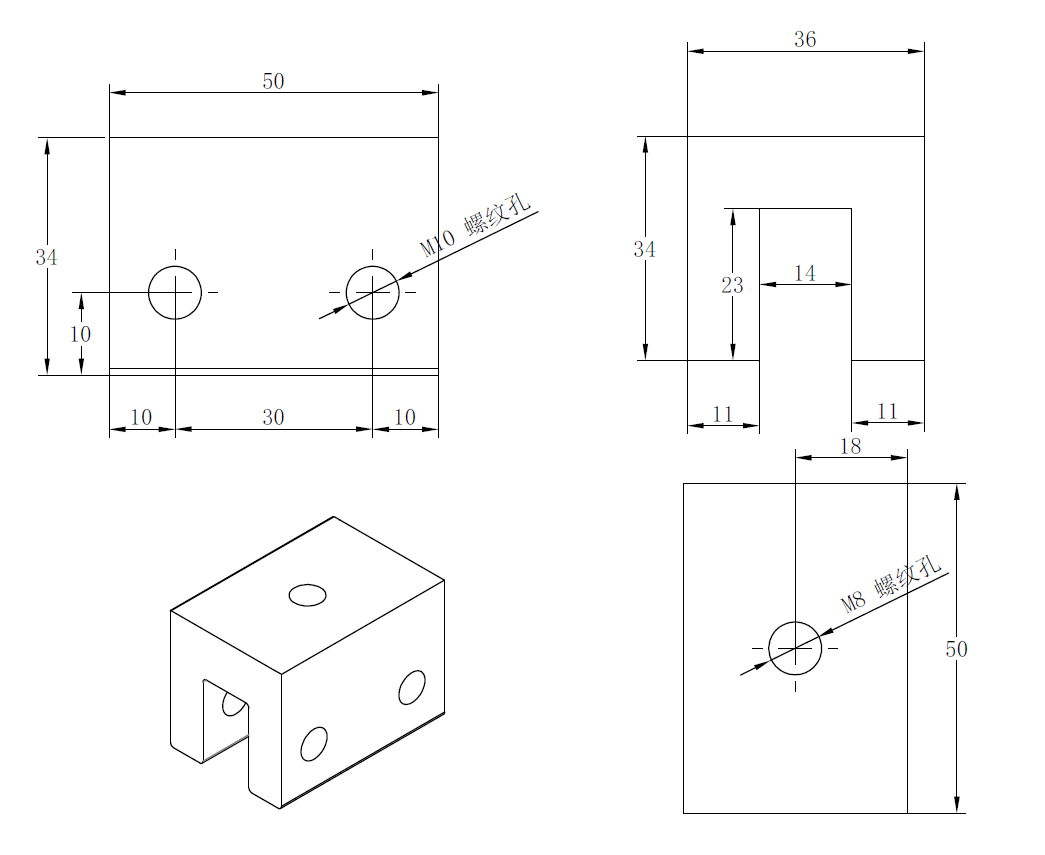

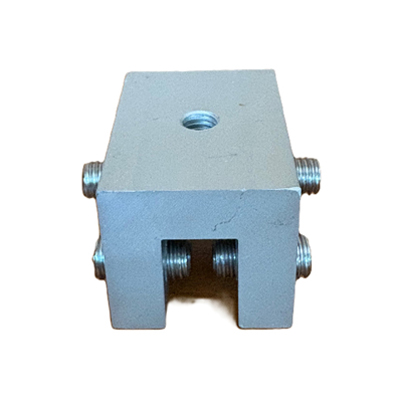

Seamlock Bracket SU5

Drawing
